The Valve Agency

Material:

  • Body:  Cast Iron, ASTM A126 Class B
  • Body Seat:  316 Stainless Steel
  • Disc Seat Ring:  Buna-N
  • Shaft:  Stainless Steel
  • Shaft Bearings:  Lead Free Bronze

Material:

  • Body, Disc:  Cast Iron, ASTM A126 Class B
  • Cover:  Steel, ASTM A36
  • Body Seat:  316 Stainless Steel
  • Disc Arm:  Ductile Iron, ASTM A536 Grade 65-45-12 (2-4”) or Steel, ASTM A36 (8-24”)
  • Seat Ring:  Thiokol
  • Shaft:  Stainless Steel

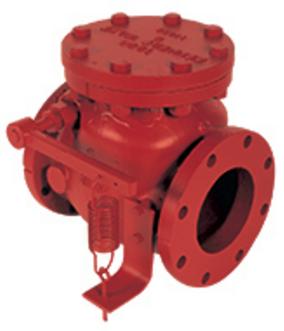

Heavy Duty Lever & Spring Swing Check Valve

Swing Check Valves

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Superior flow characteristics
  • Drop-tight seating
  • Optional bottom buffer or top mounted hydraulic cylinder
  • Optional visual position indicator
  • 6" to 48" Class 125 and 250 flanged
  • NSF/ANSI 61 certified for contact with drinking water
    NSF/ANSI 372 certified lead free

  • Additional options available

​​Product Features and Benefits:

  • Quick-closing, slam resistant
  • Rugged, lead-free construction
  • Full waterway for low headloss
  • Drop tight seating
  • Oversized shaft and bearings for high cycle operation
  • Adjustable PTFE shaft packing for low friction operation
  • Horizontal or vertical installation
  • 2" to 54" Class 125 and 250 flanged
  • NSF/ANSI 61 certified for contact with drinking water
  • NSF/ANSI 372 certified lead free
  • Many options available

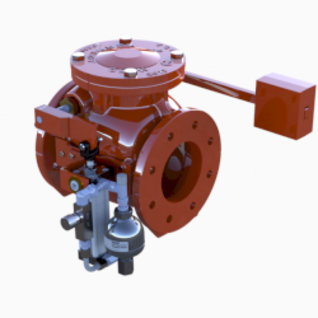

Oil-Controlled Closure Swing Check Valve

​​​The Oil-Controlled Closure Swing Check Valve is a free opening check valve with two-stage closure to minimize slam and surge on high head water and sewage pumping applications.  The valve is designed to freely and smoothly open on pump start-up and provide full waterway for minimum head loss.  Following pump shutdown, the valve closes rapidly during the first stage then engages the hydraulic system to provide a controlled final closing speed to prevent slam and mitigate surge.


​MADE IN AMERICA



The AWWA C508 Air Cushion Swing Check Valve is designed for dependable, non-slam operation under rigorous conditions in water and sewage pump stations. Available from 2” to 54”, ANSI Class 125 or 250 flanged for horizontal or vertical installation, its lead-free, heavy-duty construction.

MADE IN AMERICA

Houston: 281-883-4331

Fax: 512-676-5835

sales@thevalveagency.com



ValveAgency

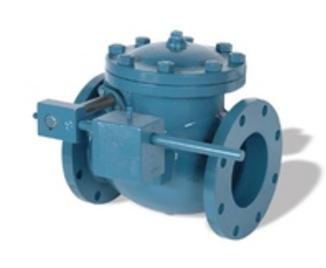

Heavy Duty Lever & Weight Swing Check Valve

Air Cushion Swing Check Valve

​​Product Features and Benefits:

  • Non-slam operation with pump shut down surge control
  • Rugged lead-free construction
  • Side-mounted external hydraulic system controls final closing speed
  • Zero leakage replaceable resilient seat
  • Horizontal or vertical installation
  • 2” to 24” Class 125 flanged

Tilting Disc Swing Check Valve

The Heavy-Duty Swing Check Valve is ruggedly designed to withstand the rigor and frequent operation of pump station use, opening freely when the pump starts and closing quickly and quietly upon pump shutdown to prevent reverse flow.



Material:

  • Body:  Cast Iron, ASTM A126 Class B
  • Body Seat:  316 Stainless Steel
  • Disc Arm:  Ductile Iron, ASTM A536, Grade 65-45-12
  • Disc Seat Ring:  Buna-N
  • Shaft:  Stainless Steel
  • Shaft Bearings:  Lead Free Bronze

The AWWA C508 Heavy-Duty Swing Check Valve is ruggedly designed to withstand the rigor and frequent operation of pump station use, opening freely when the pump starts and closing quickly and quietly upon pump shutdown to prevent reverse flow.


MADE IN AMERICA


​​Product Features and Benefits:

  • Rugged, lead-free construction
  • Zero leakage replaceable rubber seat
  • External, side-mounted non-corrosive cushion chamber
  • Horizontal or vertical installation
  • Easily maintained through bolted cover
  • Field convertible from right hand to left hand with no additional parts
  • NSF/ANSI 61 certified for contact with drinking water
  • NSF/ANSI 372 certified lead free
  • Many options available

Material:

  • Body:  Cast Iron, ASTM A126 Class B
  • Body Seat:  316 Stainless Steel
  • Disc Arm:  Ductile Iron, ASTM A536, Grade 65-45-12
  • Disc Seat Ring:  Buna-N
  • Shaft:  Stainless Steel
  • Shaft Bearings:  Lead Free Bronze

Material:

  • Body: Class 125 - Cast Iron, ASTM A126 Class B or Class 250 - Ductile Iron, ASTM A536 Grade 65-45-12
  • Body Seat: Bronze (No Lead) ASTM B30 or B505
  • Disc: Ductile Iron, ASTM A536 Grade 65-45-12 (>14”), Bronze (No Lead) (14” and smaller)
  • Disc Seat: Bronze (No Lead) ASTM B30 or B505
  • Pivot Pins: Stainless steel, Type 303
  • Pivot Bushings: Bronze (No Lead) ASTM B30 or B505
  • Internal Fasteners: Stainless Steel, Type 304

The Tilting Disc Swing Check Valve features a streamlined flow design for low headloss. The unique design also provides quick-open/close and drop-tight seating for extended life.



​​Product Features and Benefits:

  • Quick-closing, slam resistant
  • Rugged, lead-free construction
  • Full waterway for low headloss
  • Drop tight seating
  • Oversized shaft and bearings for high cycle operation
  • Adjustable PTFE shaft packing for low friction operation
  • Horizontal or vertical installation
  • NSF/ANSI 61 certified for contact with drinking water
  • NSF/ANSI 372 certified lead free
  • 2" to 48" Class 125 and 250 flanged
  • Many options available
