Magmeters (Magnetic Flow Meters)

The most frequent applications of our magnetic flow meters include irrigation, fracking fluid monitoring, groundwater monitoring, municipal water management, and desalination processes. Whether you need an industrial, agricultural, or environmental precision fluid measurement tool, our magmeters are up to the task.


​Seametrics produces several different types of flow meters. From industrial magnetic flow meters to mechanical paddlewheel meters, we’ve created several solutions for precision fluid measurement.

We’ve divided the different types of flow meters and flow meter models into several categories:

  • Industrial Magmeters
  • Irrigation Magmeters
  • Mechanical Paddlewheel Meters
  • Mechanical Turbine Meters
  • Multi Jet Meters
  • Single Jet Meters
  • Flow Meter Displays and Converters

IMAG 4700P

Battery Powered Flanged In-line Magmeter,

Includes One Pulse Output

  • Easy Setup
  • Battery or external DC power versions
  • Minimal straight pipe
  • Meter mounted rate/total indicator
  • Pulse output standard
  • Additional optional output (DC version) 4-20mA loop, HART/4-20mA, or Modbus
  • Optional datalogger
  • Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing
  • NSF/ANSI 61 approved, IP68 rated
  • iMAG-4700p and iMAG4700r models also availableType your paragraph here.

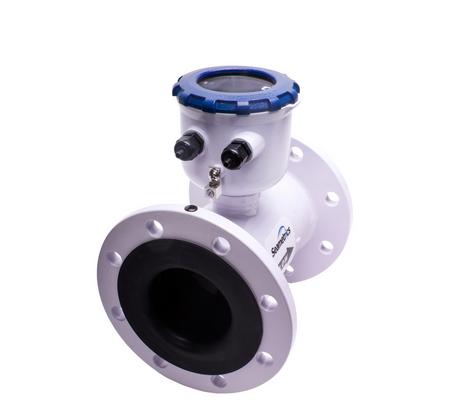

IMAGE 4700

Premium Flanged In-line Magmeter,

Includes One Pulse and 4-20mA Output

  • Easy Setup

  • External AC or DC power versions, with battery backup
  • Minimal straight pipe
  • Meter mounted rate/total indicator
  • Pulse and 4-20mA output standard
  • Additional optional output: HART/4-20mA, Modbus, or Digital
  • Optional datalogger
  • Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing
  • NSF/ANSI 61 approved, IP68 rated
  • iMAG-4700 and iMAG4700r models also available​

IMAG 4700R

Remote Display Flanged In-line Magmeter,

Includes One Pulse Output

  • Easy setup
  • External AC or DC power versions, with battery backup
  • Minimal straight pipe
  • Remote mounted rate/total indicator
  • Pulse output standard
  • Additional optional output: 4-20mA, HART/4-20mA, or Modbus
  • Optional datalogger
  • Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing
  • NSF/ANSI 61 approved, IP68 rated
  • iMAG-4700 and iMAG4700p models also available

​​Magnetic ​Flow Meters

AG90 Electromagnetic Insertion Flow Meter

Battery Operated

The AG90-series battery powered, insertion electromagnetic flow meter is designed for use with conductive fluids in 4”–12” pipe. The AG90’s stainless steel body allows the meter to operate in a wide range of temperatures, pressure, and corrosive or dirty environments. The AG90 is highly suitable for difficult applications. With no moving parts, over-run conditions will not degrade the life of the AG90. It is resistant to wear from debris found in surface or ground water and there are no bearings to wear out or propellers to damage. Rate and total units can be set via the front panel touch key pad by the user. Bidirectional flow is standard with totals available in forward, reverse, net, batch forward and batch reverse. The AG90 is battery powered and an output cable is available for transmitting the pulse signal to remote devices. The AG90 includes a Seametrics saddle which has been designed to accommodate a wide range of pipe sizes and types while ensuring correct placement in the pipe. In addition, an optional internal data logger allows local storage of flow history.
