Plug Valve

3"-24" ECO-Centric® Plug Valve

1/2" to 2-1/2" ECO-Centric® Plug Valve

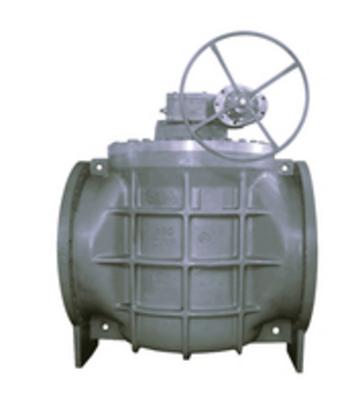

30" and larger ECO-Centric® Plug Valve

The ECO-Centric® Plug Valve meets the demanding requirements of AWWA C517 and is built for dependable, long term service in exposed or buried service applications. Its flow efficient round port is uniquely designed to provide lower headloss which results in reduced power consumption and pumping cost. In addition, the valve can pass larger solids so there is less chance of clogging and its round port easily accommodates pigging equipment.

The GA Industries ECO-Centric® rectangular port plug valve meets the demanding requirements of AWWA C517 and is built for dependable, long term operation in exposed or buried service installations. GA Industries rectangular port plug valves in sizes 24” to 54” have a standard port area of at least 80% pipe area while 24” to 48” are available with 100% port area for reduced headloss.

​​The round port ECO-Centric® Plug Valve meets the demanding requirements of AWWA C517 and is uniquely designed to reduce power consumption and save energy costs.The round port ECO-Centric® Plug Valve meets the demanding requirements of AWWA C517 and is uniquely designed to reduce power consumption and save energy costs.

​​​THE VALVE AGENCY, INC.

Material:

  • Body and Cover:  Ductile Iron, ASTM A536 Grade 65-45-12
  • Body Seat:  95% Pure Nickel, Weld Overlaid onto Body
  • Plug/Stem:  Ductile Iron, ASTM A536 Grade 65-45-12, Buna-N Rubber Coated
  • Bearings: Permanently Lubricated 316 Stainless Steel
  • Cover Bolts: Steel, Zinc Plated


Corrosion protection:

  • High strength epoxy coating

​​Product Features and Benefits:

  • Fully conforms to AWWA Standard C517
  • Class 125 flanged or mechanical joint
  • Rugged ductile iron body and cover
  • Corrosion resistant epoxy coating
  • Round port for high capacity and low headloss
  • Bi-directional shutoff for installation versatility
  • Long term tight seating
  • Rubber coated ductile iron plug
  • Manual or power actuation
  • Accessories available

​​Product Features and Benefits:

  • Class 125 flanged or mechanical joint
  • Rugged and corrosion resistant
  • High capacity
  • Long term tight seating
  • Standard ductile iron plug, Buna-N rubber coating transfer molded and vulcanized
  • PTFE backed 316SS upper and lower bearings
  • Bi-directional shutoff
  • Lifting eyes and feet to facilitate installation
  • Manual or power actuation
  • Accessories available

Material:

  • Body: Epoxy Coated Cast Iron, A126 Class B with Welded Nickel Seat
  • Cover: Epoxy Coated Cast Iron, A126 Class B
  • Plug: Ductile Iron, A536 Grade 65-45-12 with Molded and Vulcanized Buna-N Coating
  • Cover Bolts: Steel, Zinc Plated
  • Bearings: 316 Stainless Steel + PTFE
  • Packing: Rubber, Buna-N


Corrosion protection:

  • High strength epoxy coating

Material:

  • Body: Epoxy Coated Ductile Iron, A536 Grade 65-45-12 with welded nickel seat
  • Cover: Epoxy Coated Ductile Iron, A536 Grade 65-45-12
  • Plug/Stem: Ductile Iron/Rubber Coated, ASTM A536 Grade 65-45-12/Buna-N (Optional EPDM)
  • Bearings:  Permanently Lubricated 316 Stainless Steel
  • Cover Bolts: Steel, Zinc Plated
  • Shaft Packing: Buna-N (Optional EPDM)


Corrosion protection:

  • High strength epoxy coating

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Round port for high capacity and low headloss
  • Adjustable packing
  • Bi-directional shutoff for installation versatility
  • Long term tight seating
  • Rubber coated ductile iron plug
  • Class 125 flanged or mechanical joint
  • Manual or power actuation
  • Accessories available​
