Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B
  • Seat: Buna-N
  • Float Ball: 316 Stainless Steel
  • Float Guide: UHMWPE
  • Cushion: Buna-N
  • Bolts: Steel

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight shutoff
  • Adjustable opening pressure
  • Protective hood and screen

Air & Vacuum Valve: Wastewater

Compound Lever Air Release Valve


Wastewater

Air Release Valve: 925 / 927 / 929

Air Vacuum Valve: 935 / 939

Combination Air Valve: 942 / 955 / 957 / 959


Available in Stainless Steel under the Duovent Product Line


Air & Vacuum Valve: Water

The GA Industries Compound Lever Air Release Valve is used for higher capacity applications where a larger valve and double lever are needed to regulate air release. The standard Buna-N seat is suitable for cold and hot water up to 180° F.


American Iron and Steel compliant version available.

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight seating
  • Full length guides ensure proper seating
  • Spherical, stainless steel float
  • Rubber cushions protect float from damage
  • Ensures complete purging of all air prior to valve closure

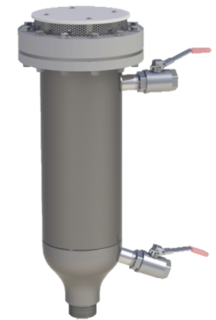

The GA Industries Wastewater Air Valve exhausts air and sewage gas from pressurized sewage systems or force mains. The valve’s elongated body minimizes aspiration and helps keep solids and debris from affecting operation.



American Iron and Steel compliant version available.

Dual Body Combination Air Valve: Water

GA Industries Air Valve Figure Numbers:


Clean Water

Air Release Valve: 905 / 910 / 912 / 920 / 922 / 923

Air Vacuum Valve: 930 / 931 / 933

Combination Air Valve: 945 / 950 / 960 / 970 / 983


​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight seating
  • Stainless steel Float
  • Increases system efficiency
  • Reduces operating costs
  • Optional backflushing attachments

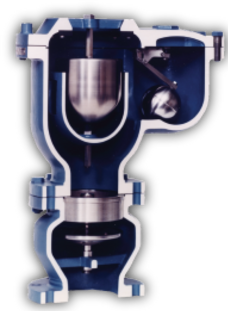

The GA Single Body Combination Air Valve is a two-valve assembly consisting of an air & vacuum valve and an air release valve. The combination allows the valve to exhaust large amounts of air at start-up, to release small pockets of air while the system is running, and to prevent critical vacuum conditions during draining. The Kinetic feature prevents the valve from blowing shut before all the air is vented.

American Iron and Steel compliant version available.

Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B
  • Seat: Buna-N
  • Float, Arm, Ball, Rod: 316 Stainless Steel
  • Orifice, Leverage Bracket, Lever Arm: 316 Stainless Steel
  • Pipe Plug:Iron
  • Bolts: Steel

The GA Wastewater Vacuum Breaking Valve prevents critical vacuum conditions during system draining for water, wastewater, and sewage. The air inlet is supplied with a hood and screen to minimize entry of foreign material.

American Iron and Steel compliant version available.

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight seating
  • Full length guides ensure proper seating
  • Spherical, stainless steel float
  • Rubber cushions protect float from damage
  • Ensures complete purging of all air prior to valve closure

​​

The GA Industries DUOJET® is a high performance “triple function” combination air valve that efficiently vents air during pipeline filling, rapidly admits air during pipeline draining, and continually releases air pockets while the system is operational. Its simple design employs only two moving parts and its corrosion resistant fusion bond epoxy coated ductile iron and stainless steel construction provides long term reliable operation.

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight seating
  • Stainless steel Float
  • Increases system efficiency
  • Reduces operating costs
  • Optional backflushing attachments

Vacuum Breaking Valve: Wastewater

Material:

  • Full compliance with AWWA C512

  • Available 2” to 6”, ANSI Class 150 or 300 flanged inlet
  • Ductile iron body and cover, fusion bond epoxy coated
  • Type 316 stainless steel float
  • EPDM seats

Dual Body Combination Air Valve

Single Body Combination Air Valve

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Full sized outlet for maximum capacity
  • Drop tight seating
  • Full length guides ensure proper seating
  • Spherical, stainless steel float
  • Rubber cushions protect float from damage
  • Ensures complete purging of all air prior to valve closure

The GA Dual Body Combination Air Valve is a two-valve assembly consisting of an air & vacuum valve and an air release valve. The combination allows the valve to exhaust large amounts of air at start-up, to release small pockets of air while the system is running, and to prevent critical vacuum conditions during draining. The Kinetic feature prevents the valve from blowing shut before all the air is vented.

American Iron and Steel compliant version available.

Single Body Combination Air Valve

Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B
  • Seat: Buna-N
  • Float Ball: 316 Stainless Steel
  • Float Guide:UHMWPE
  • Cushion: Buna-N
  • Bolts: Steel

​The GA Industries Air & Vacuum Valve utilizes the Kinetic operating principle and is designed to prevent the valve from blowing shut before all the air is vented. The valve is held open by the exiting air stream, but is immediately closed when solid water rises into the valve and lifts the float ball, sealing the orifice.


American Iron and Steel compliant version available.

Dual Body Combination Air Valve: Wastewater

Air Valves

Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B
  • Seat: Buna-N
  • Float, Arm, Ball, Rod: 316 Stainless Steel
  • Orifice, Leverage Bracket, Lever Arm: 316 Stainless Steel
  • Pipe Plug:Iron
  • Bolts: Steel

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight seating
  • Stainless steel Float
  • Prevents trapped air pockets
  • Increases system efficiency
  • Reduces operating costs
  • NSF/ANSI 61 certified for contact with drinking water
  • NSF/ANSI 372 certified lead free

​​Product Features and Benefits:

  • Rugged and corrosion resistant
  • Drop tight seating
  • Stainless steel float
  • Increases system efficiency
  • Reduces operating costs
  • Optional backflushing attachments

Air Release Valve

GA Industries Air Valve Documents Download Drawings / Installation Manuals / Specifications / Brochures

DUOJET Combination Air Valve

Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B
  • Seat: Buna-N
  • Float, Float Arm: 316 Stainless Steel
  • Orifice, Leverage Bracket: 316 Stainless Steel
  • Gasket: Composition
  • Bolts: Steel

Material:

  • Body, Disc: Cast Iron, ASTM A126 Class B
  • Body Seat: 316 Stainless Steel
  • O-Ring: Buna-N
  • Disc Arm: Ductile Iron ASTM A536, Grade 65-45-12
  • Cover: Steel
  • Shaft: Stainless Steel
  • Bushing: Bronze
  • Screen: Stainless Steel

Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B
  • Seat: Buna-N
  • Float Ball: 316 Stainless Steel
  • Float Guide: UHMWPE
  • Cushion: Buna-N
  • Bolts: Steel

Material:

  • Body, Cover: Cast Iron, ASTM A126 Class B or 316 Stainless Steel (Durovent)
  • Floats: 316 Stainless Steel
  • Internal Trim: 316 Stainless Steel
  • Seats: Buna-N
  • Cover Bolts: Zinc Plated Steel or 316 Stainless Steel (Durovent)


The GA Dual Body Combination Air Valve for wastewater is a two-valve assembly consisting of a wastewater air & vacuum valve and a wastewater air release valve. The combination allows the valve to exhaust large amounts of air at start-up, to release small pockets of air while the system is running, and to prevent critical vacuum conditions during draining.


American Iron and Steel compliant version available.

The GA Industries Wastewater Air Release Valve exhausts air and sewage gas from pressurized sewage systems or force mains. The valve’s elongated body minimizes aspiration and helps keep solids and debris from affecting operation.

American Iron and Steel compliant version available.

​​Product Features and Benefits:

  • Fusion bond epoxy coated ductile iron body and cover
  • Only two moving parts, no linkages to bind or break
  • Stabilized float, vents air at up to sonic velocity without blowing shut
  • Seals tightly to 5 PSI, low pressure seating to 1.5 PSI available
  • Stainless steel cover fasteners
  • Working pressure up to 500 PSI
  • NSF/ANSI 61 certified for contact with drinking water
