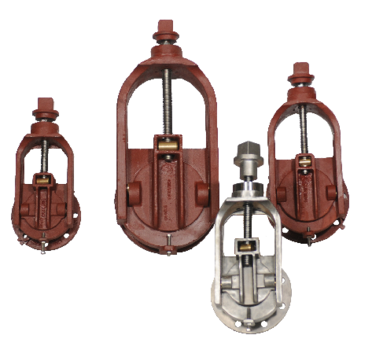

Sluice Gate Valves

Sluice gates are true end of line valves, designed to hold back water with minimal leakage in applications ranging from drainage pipes to effluent ponds to distributor boxes.

1. Cast Ductile Iron Design.
As opposed to fabricated parts, our cast parts have less potential for failure over time.

2. Self-Contained Assembly.
Our unique assembly doesn’t require rails to guide the disc, allowing for easy installation.

3. High Unseating Pressure Tolerance.
With an unseating pressure rating of 50psi, our sluice gates perform better than the industry standard.

4. Extension Stem Operation.
Our sluice gates can be easily operated by using an extension stem with 2” nut and socket, floor stand or hand wheel.

5. Stainless Steel Stem.
Our sluice gates are constructed with a stainless steel stem to prevent corrosion and ensure smooth operation.

6. Ball Bearing Adjustment Screws.
For our larger models, 12”, 14” and 16”, special ball bearing adjustment screws help to ensure a fully even positive seal.

​Sluice Gate Valves
