Product features and benefits

  • Controls surge associated with sewage or water pump operation
  • Electric motor actuation with integral check feature
  • Rugged and corrosion resistant

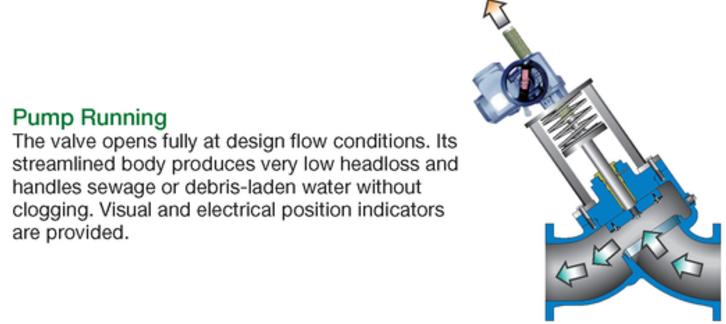

  • Flow efficient design with streamlined wye or long radius elbow body
  • Tight sealing with replaceable disc seat ring

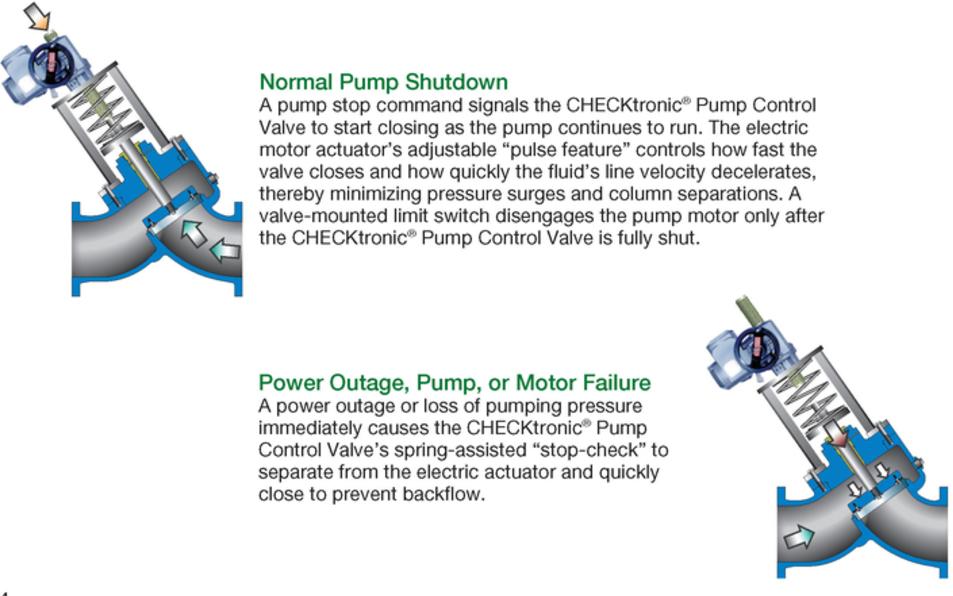

  • Fail-safe stop check prevents backflow upon power outage, pump or motor failure
  • NSF-61 Certified for contact with drinking water
  • NSF-372 Certified lead free
  • 3" - 36" class 125 and 250 flanged

Checktronic

Material

  1. Body: Cover Cast Iron (Standard) ASTM A126 Class B or Ductile Iron (Optional) ASTM A536 or Cast Steel (Optional) ASTM A216 Gr. WCB or Cast Stainless Steel (Optional) ASTM A351
  2. Disc: Ductile Iron (Standard) ASTM A536 or Cast Stainless Steel (Optional) Type 18-8 or Cast Steel ASTM A216 Gr. WCB
  3. Body Seat, Seat Follower: Stainless Steel Type 316
  4. Stem: Stainless Steel Type 303
  5. Disc Seat Ring: Synthetic Polymer, Ultra High Molecular Weight Polyethylene (UHMWPE)


Corrosion protection

High solids NSF-61 certified epoxy coating

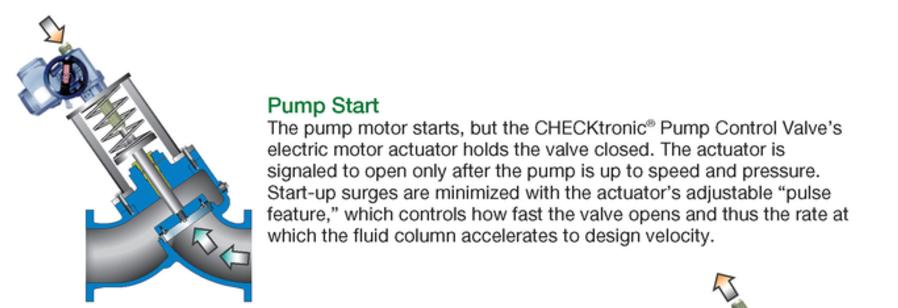

The CHECKtronic Pump Control Valve has extensive experience in the design of automatic control valves to control surges associated with the starting and stopping of pumps. Its innovative design incorporates a fail-safe check feature into an electric motor operated valve, providing the ideal combination of surge control and positive closure upon power outage, pump or motor failure, or other emergencies.

Meets American Iron and Steel requirements.

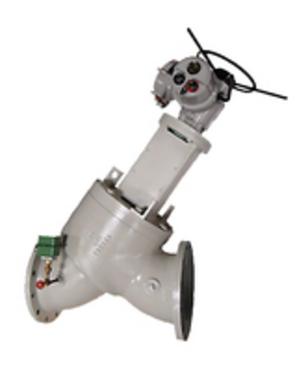

Pump Control Valve
