​TEAM’s patented InsertValve™ delivers value, reliability and performance second to none. This field proven valve installs under pressure, eliminating the need for line shut downs in the event of planned or emergency valve cut-ins.

Designed for a wide range of line sizes and types, the InsertValve’s wedge gate seats on the valve body, not the pipe bottom. This unique and advantageous feature prevents the seat from coming into contact with the cut pipe edges to significantly extend valve life. TEAM InsertValveTM can be repaired under pressure.

TEAM’s InsertValve is available in 4-inch thru 12-inch sizes with handwheel and gear operators. InsertValve have been tested and proven to deliver reliable service at pressures ranging from vacuum to 250 psig and temperatures to 180°F. Unlike other valve insertion designs that are derived from Line stop technology, the InsertValve is designed to handle full water and wastewater system hydraulic forces that are typically applied. Rugged InsertValve can be orientated in virtually any position on a variety of pipe types including ductile iron, cast iron, steel, and PVC.

TEAM’s extensive network of branch offices and authorized installation contractors insures professional installation services by trained and certified technicians. In addition, piping system owners also have the option of purchasing a turnkey installation system to self perform installations, and make repairs to InsertValve in their piping system and make repairs by adding InsertValves in their piping system resulting in a valve that meets or exceeds recognized industry requirements and complies with all health and safety regulations. TEAM’s InsertValve meets or exceeds most recognized industry standards, along with local health and safety regulations.

TEAM Industrial InsertValve

TEAM InsertValves can help your City:

  • Meet ANSI/AWWA C515 material standards
  • Install the valve on a full range of pipe sizes and types
  • Maintain pipe integrity
  • Provide instant isolation zones for security and peace of mind
  • Eliminate backflow contamination, purging and bac-t hits
  • Allow for removal/replacement of downstream pipe at any time
  • Enable in-line, under pressure repair of all moving parts
  • Ensure clean valve seat after installation process

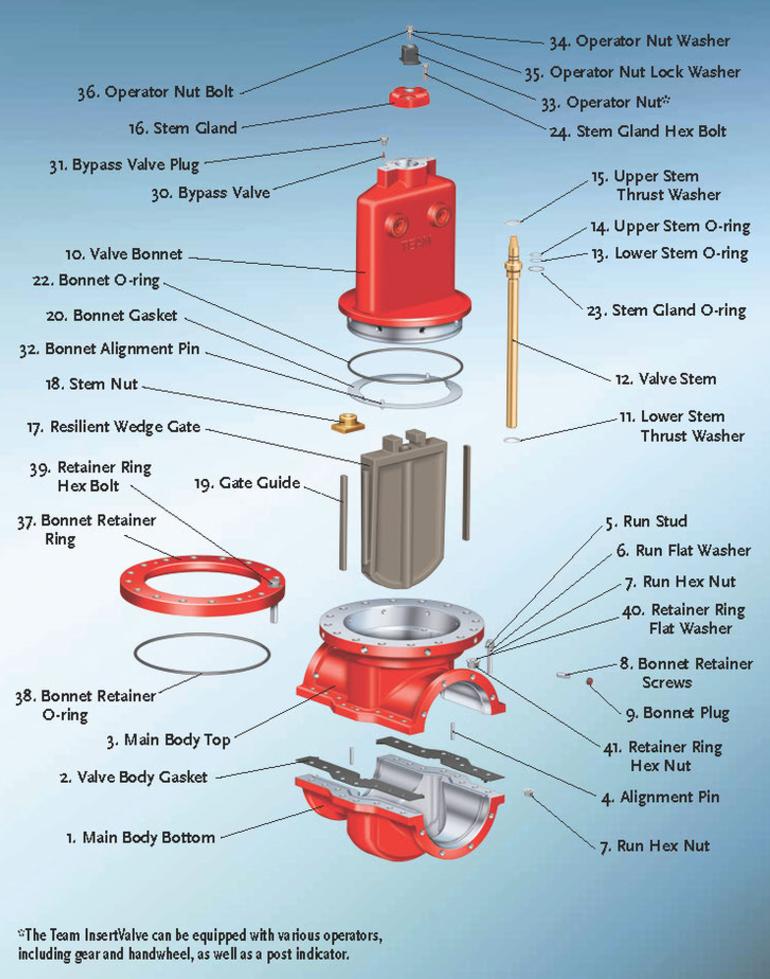

Materials of Construction (AIS / NSF/ANSI 61 / AWWA Compliant)
